Lightweight Design
Offers easier handling and reduced transport costs without compromising safety.
Built for Strength Engineered for Production

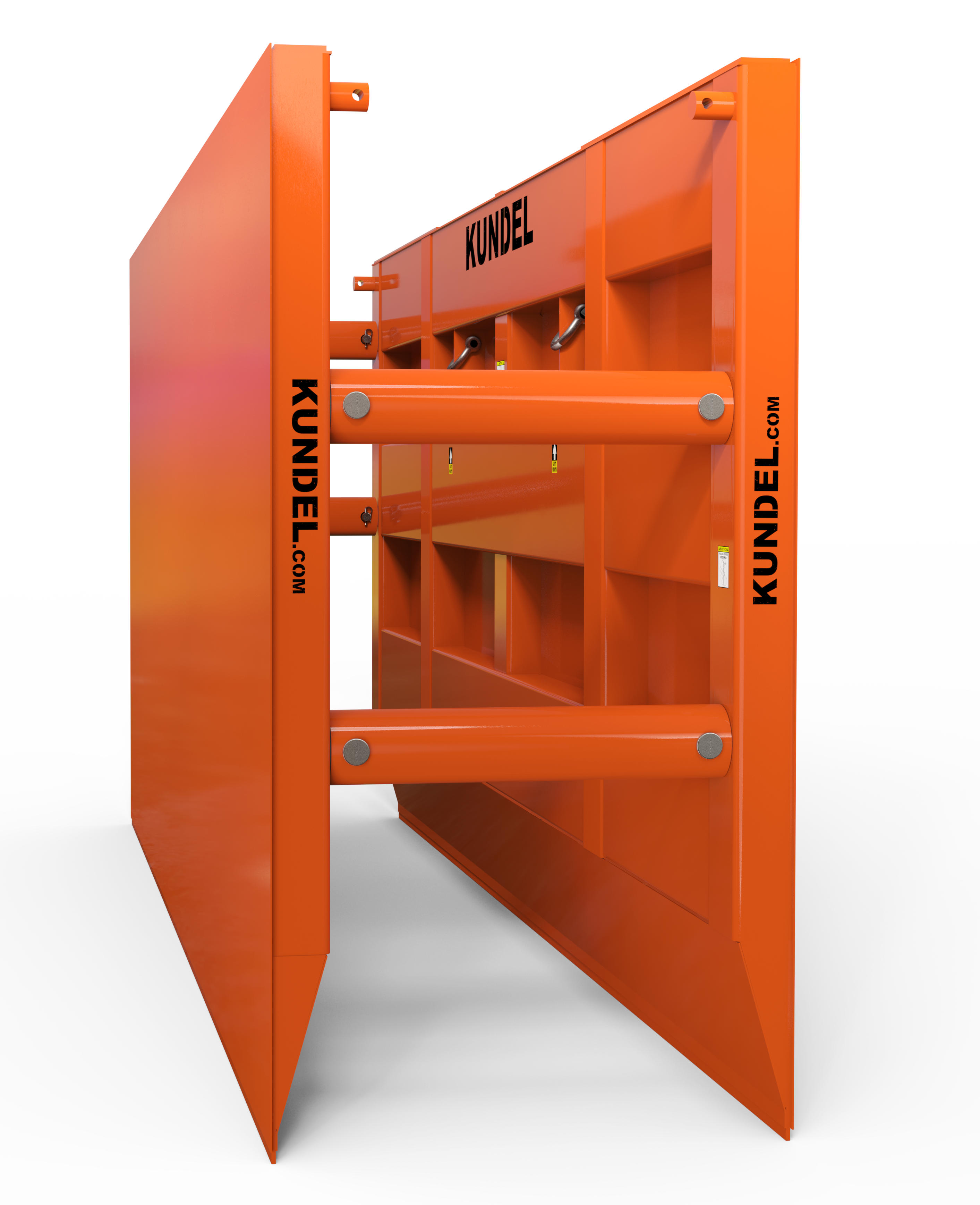

Titan Series Trench Shields
The Titan Series from Kundel, available through North East Shoring, is built for the most challenging projects. With a continuous vertical and horizontal framework, these shields use formed steel to deliver maximum strength without unnecessary weight or bulk.
Reinforced pounding pads and forged steel spreader sockets add durability where it counts, cutting down on wear and keeping the box working longer. Available in multiple sizes, the Titan Series is a reliable choice for deep excavations and infrastructure work when strength and dependability matter most.
Lightweight Design for Efficient Handling

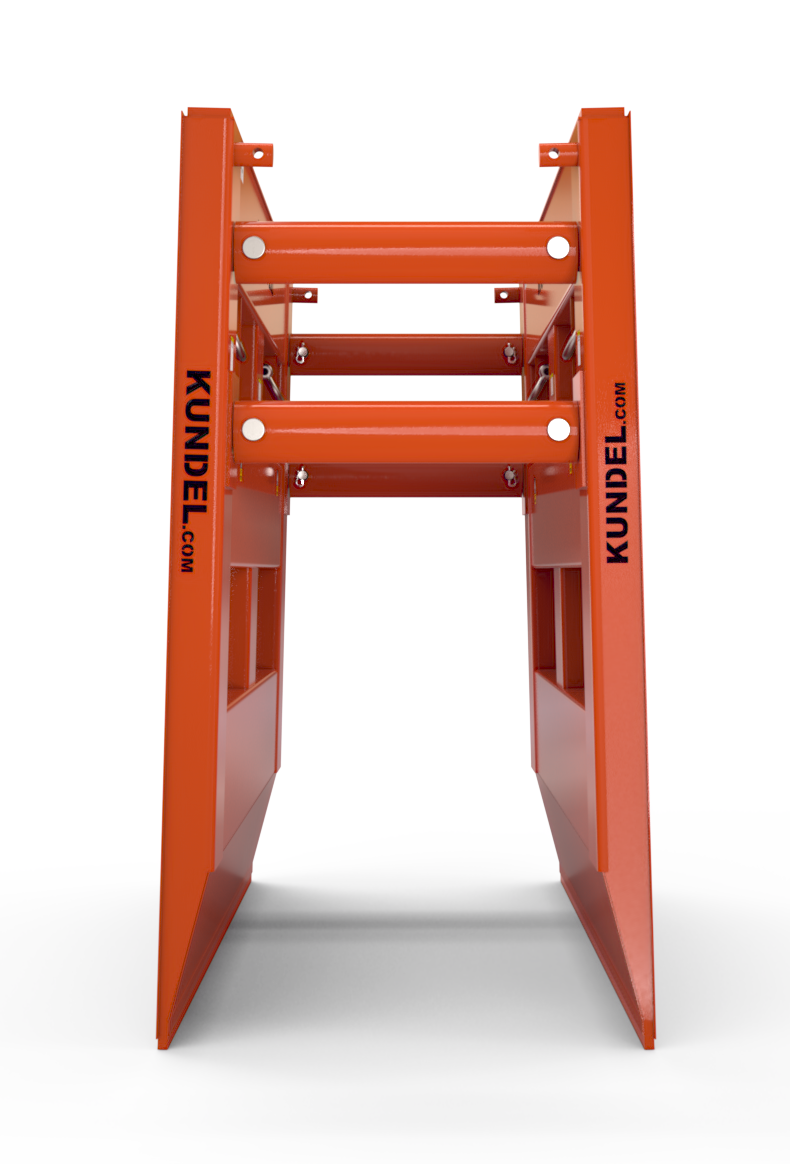

Titan Lite
The Titan Lite combines innovative engineering with a focus on maximizing strength where it’s needed most while maintaining an excellent machine-to-box weight ratio. This design is ideal for projects that require deep excavation but must also consider weight limitations due to equipment constraints.
Features and Benefits
18” Knife Edge Taper
Allows for easier driving into the soil, reducing the effort required during installation.
Reinforced Knife Edge and Pounding Area
Enhances durability and allows for repeated driving into hard soils.
Thick Pounding Pads
Ranging from 3/4" to 1-1/2", these pads facilitate the use of driving machinery without damaging the shield.
Solid Stacking Lug Bar
Offers options for stacking shields for deeper excavation needs.
Production Depths
Vary by model size, ranging from 8’ to 30’, accommodating a variety of project requirements.
Specifications
Primary Uses
Municipal repairs, plumbing
Excavator Weight Range
21K to 64K lbs
Panel Heights
4', 6', 8', 10'
Panel Lengths
16' - 26' (Longer Shields Available)
Production Depth
8’ to 30’ Depending Soil & Model
Side Wall
5", 6", & 8"
Built Stronger for Moderate Excavations
Titan Plus
The Titan Plus is built for medium-duty trench safety work, particularly in mainline applications. Its reinforced design ensures durability and safety in challenging conditions while remaining manageable for contractors.
Features and Benefits
- Variety of Wall Thicknesses: Wall thicknesses ranging from 3 1/2" to 9 1/2", allowing for custom solutions based on project requirements.
- Reinforced Knife Edge: Includes a 18” high tapered knife edge for easier driving into the ground, combined with reinforced knife edges and pounding areas to withstand severe impact and stress.
- Thick Pounding Pads: Ranging from 3/4" to 1 1/2", these pads are designed for repeated use with heavy machinery, minimizing wear and tear.
- Solid Stacking Lug Bar: Ensures secure stacking for deeper excavation needs, available in 2 1/2” to 3” options.
- Production Depth: Capable of handling depths from 8’ up to 42’, depending on the model, which caters to a broad range of excavation tasks
- Durability and Compliance: All Titan Plus models are P.E. Certified and OSHA Compliant, ensuring they meet the highest safety and performance standards.
Specifications
Primary Uses
Municipal repairs, plumbing
Excavator Weight Range
21K to 64K lbs
Panel Heights
4', 6', 8', 10'
Panel Lengths
16' - 26' (Longer Shields Available)
Production Depth
8’ to 30’ Depending Soil & Model
Side Wall
3", 5", 6", 8" & 9"
Compact, Versatile, and Built for Utility Work

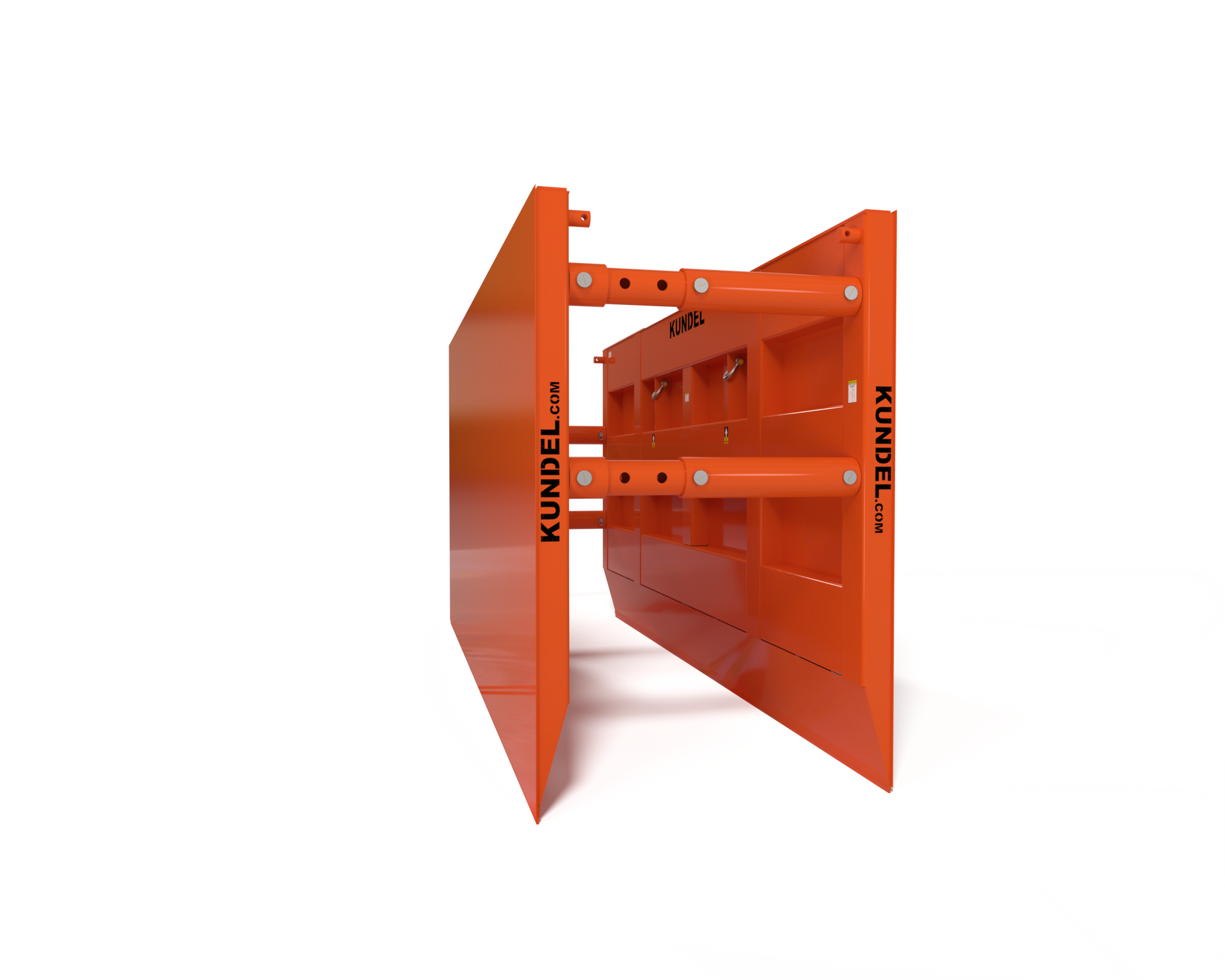

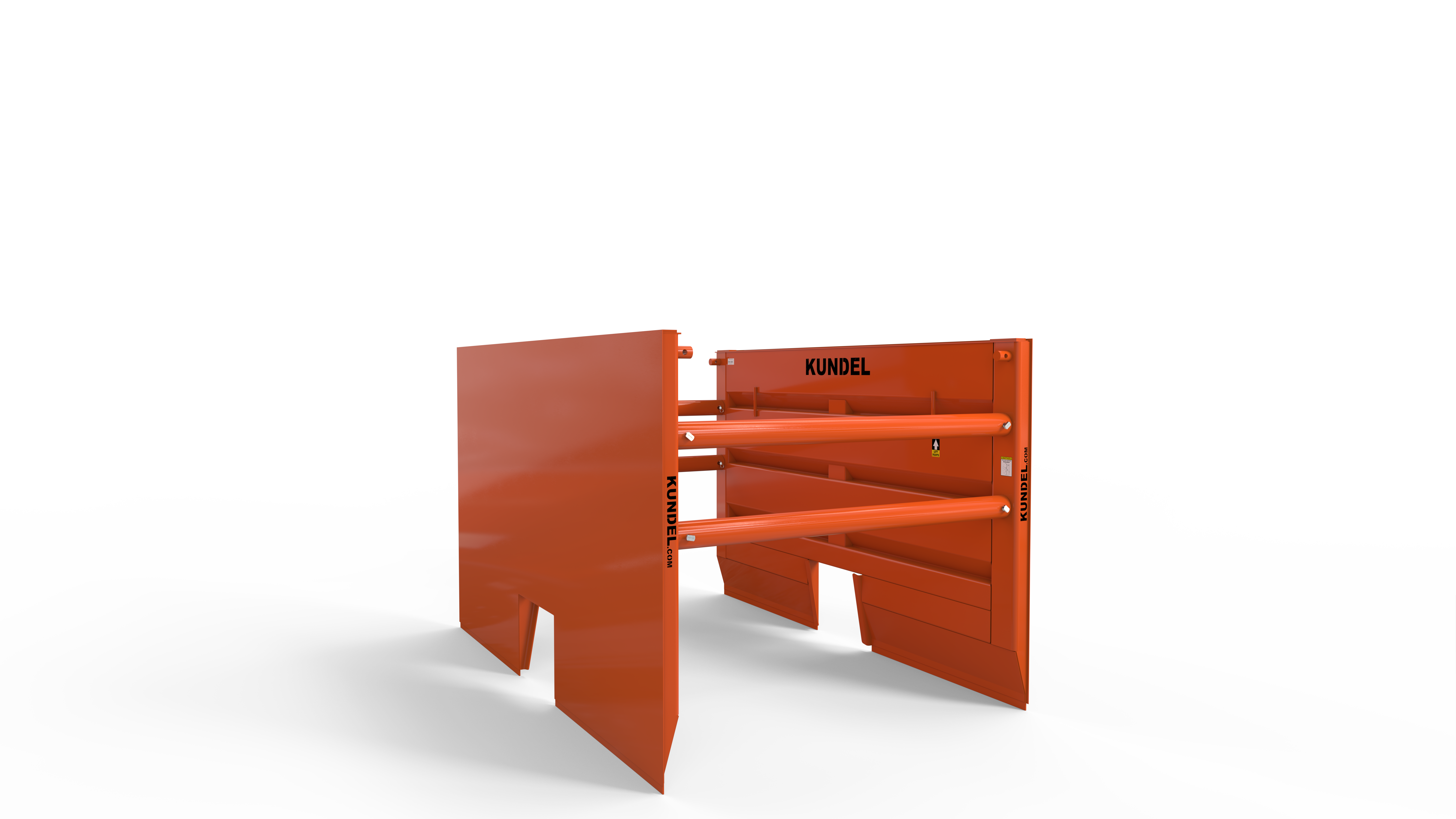

Titan Utility
The Titan Utility Series offers a streamlined and adaptable solution for trench safety in tight spaces. Designed for manholes, spot repairs, and mainline applications, these shields provide durability and protection while remaining lightweight and maneuverable. Whether working in urban areas, confined spaces, or alongside existing infrastructure, the Titan Utility Series is engineered to maximize efficiency without compromising safety.
Features and Benefits
18” Knife Edge Taper
Facilitates easier entry into the ground, reducing the force required for installation.
3/4” Thick Pounding Pads
Designed to absorb the impact during driving operations, protecting the shield's structure.
2” Solid Stacking Lug Bar
Allows for the secure stacking of multiple units, increasing the shield's versatility for deeper trenches.
1/2” x 3” Cutting Bar
Provides additional strength and support where cutting through obstacles is necessary.
Versatile Applications
Built for manholes, spot repairs, and utility installations.
Specifications
Primary Uses
Municipal repairs, plumbing, utility work
Excavator Weight Range
12K to 64K lbs (Depending on Model)
Panel Heights
4’, 6’, 8’, 10’
Panel Lengths
16’ - 26’ (Longer Shields Available)
Production Depth
12’ to 25’ (Varies by Soil & Model)
Side Wall
3”, 5”, & 6”
Built for the Toughest Jobs

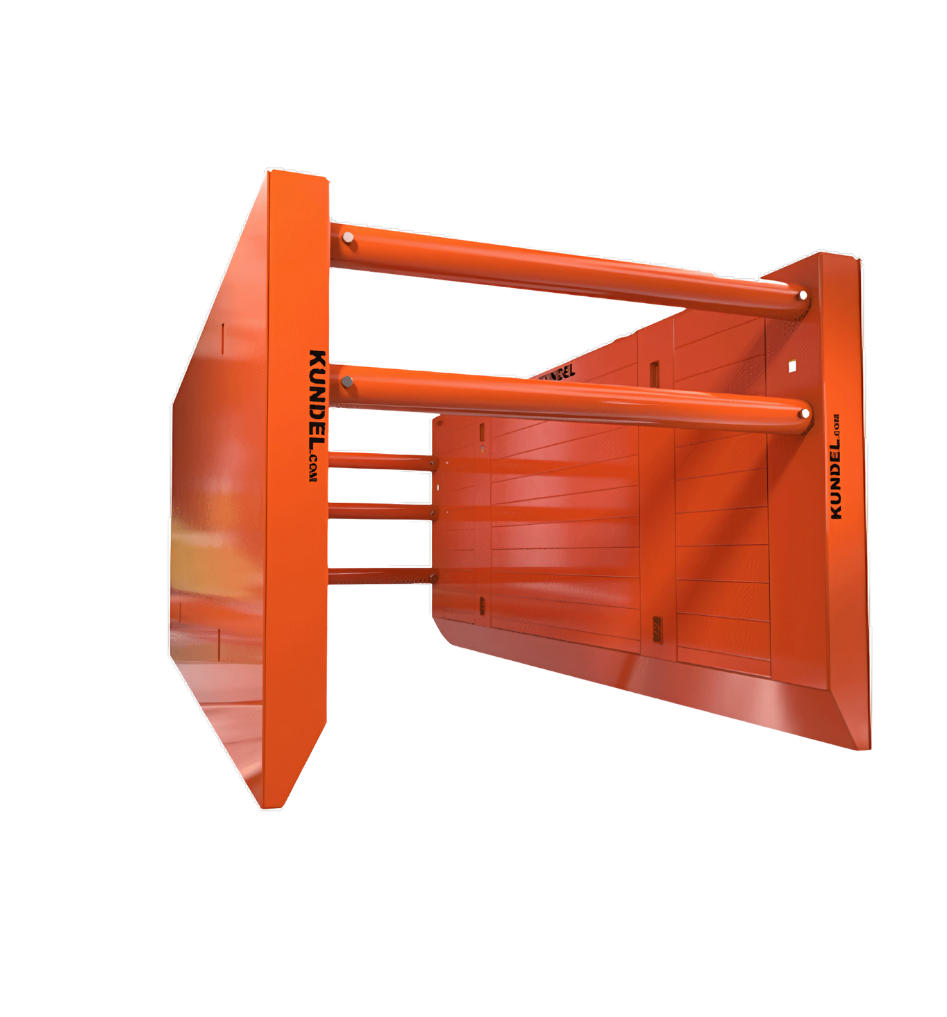

Titan Brute
The Titan Brute is designed to handle the most demanding job site conditions. Engineered for maximum durability and impact resistance, this shield is built to keep projects moving, even in the harshest environments. When the job demands unmatched strength, the Brute delivers.
Specifications
Primary Uses
Manholes, Spot Repairs, Mainline
Excavator Weight Range
38k to 48K lbs
Panel Heights
6', 8', 10'
Panel Lengths
14' - 24' (Longer Shields Available)
Production Depth
12’ to 46’ Depending Soil & Model
Side Wall
5", 6" & 8"
Features and Benefits
Formed Steel Design with Continuous Steel Members
Ensures superior structural integrity and longevity under heavy use.
18” High-Tapered, Reinforced Knife Edge
Allows for increased room in the pipe zone, facilitating easier pipe installation.
Internal Pounding Members and Stacking System
Enhances durability and allows for safe and efficient stacking of shields.
Easy Slide Outside Edge
Designed for smoother movement and easier repositioning within the trench.
Vertical Reinforced Pounding Area
Provides enhanced driving ease, reducing installation time and effort.
Strength Meets Versatility

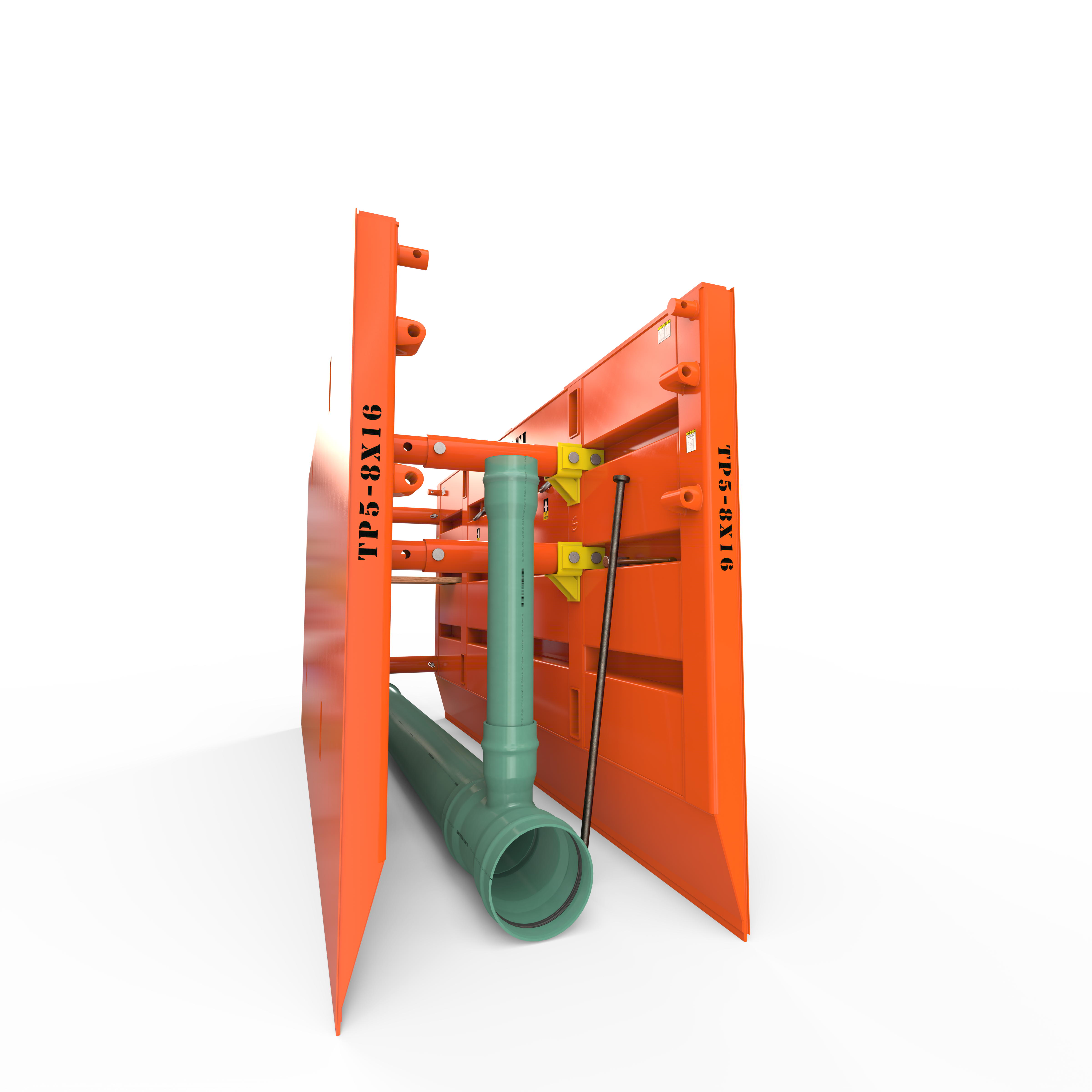

Titan Hybrid
The Hybrid combines the original Titan pocket design with added steel where it creates more resistance to deflection, resulting in a deeper soil rating. Capable of handling depths from 12' to 46' in C soil depending on the model, it’s ideal for both moderate and extensive excavation projects. It merges the lightweight design of the Titan Lite with the deep excavation capabilities of the Titan Two, offering both ease of use and robust performance.
Features and Benefits
Versatile Wall Thicknesses
Available in 5”, 6”, and 8” options to provide flexibility across different project demands.
Extended Depth Rating
Capable of handling depths from 12' to 46', in C soil depending the model, making it ideal for both moderate and extensive excavation projects.
Hybrid Construction
Merges the lightweight design of the Titan Lite with the deep excavation capabilities of the Titan Two, offering both ease of use and robust performance.
Specifications
Primary Uses
Manholes, Spot Repairs, Mainline
Excavator Weight Range
32K-130K
Panel Heights
38k to 48K lbs
Panel Lengths
6', 8', 10'
Production Depth
6' - 14' (Longer Shields Available)
Side Wall
12’ to 46’ Depending Soil & Model 5", 6" & 8"
Engineered for Depth and Performance

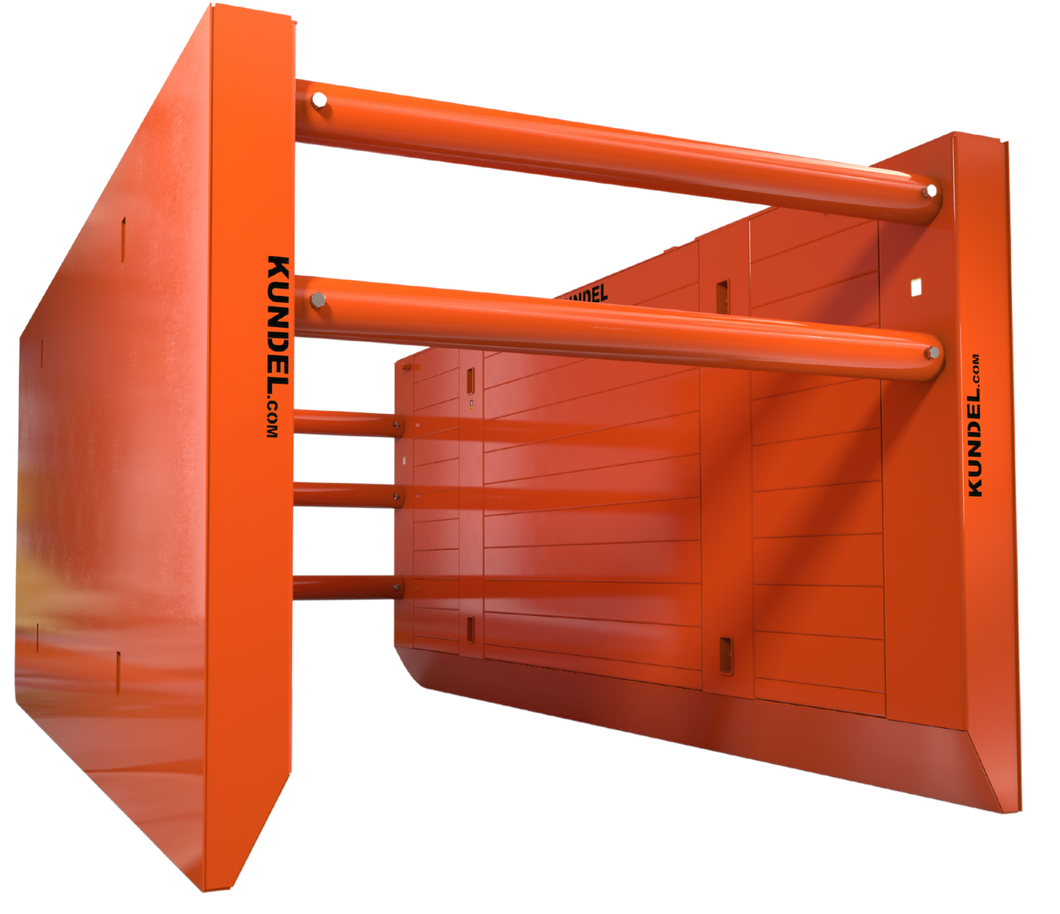

Titan Smooth Wall
The Titan Smooth Wall is engineered to maintain trench integrity in deep excavations. Its reinforced vertical and horizontal framework minimizes deflection under heavy loads, ensuring stability where it matters most. With forged steel sockets and reinforced pounding areas, this shield is designed to perform at the deepest depths.
Features and Benefits
- Smooth Interior Walls - Designed to reduce friction and soil buildup, enhancing the ease of installation and repositioning within the trench.
- Reinforced Knife Edge - An 18-inch reinforced knife edge allows for easier soil penetration and reduces the likelihood of trench pinching, facilitating smoother operations.
- Solid Steel Sockets and Cutting Bar - Equipped with solid steel sockets and a 1/2” x 3” cutting bar for increased durability and efficiency in cutting through obstructions.
- Optimal Depth-to-Weight Ratio - Delivers deep excavation capabilities with a lighter structural design, making it ideal for projects with equipment weight restrictions.
- Robust Pounding Pads and Stacking System - Features durable pounding pads and a secure stacking system that support deeper excavations and enhance the shield's versatility.
- Easy Slide Outside Edge - Simplifies the shield's movement and repositioning, minimizing operational disruptions and increasing productivity.
Specifications
Primary Uses
Deep Mainline
Excavator Weight Range
44k to 117k
Panel Heights
6', 8', 10'
Panel Lengths
14'-28' (Longer Shields Available)
Production Depth
12’ to 46’ Depending Soil & Model
Side Wall
5", 6" & 8"
Choose Whats Right For Your Project!

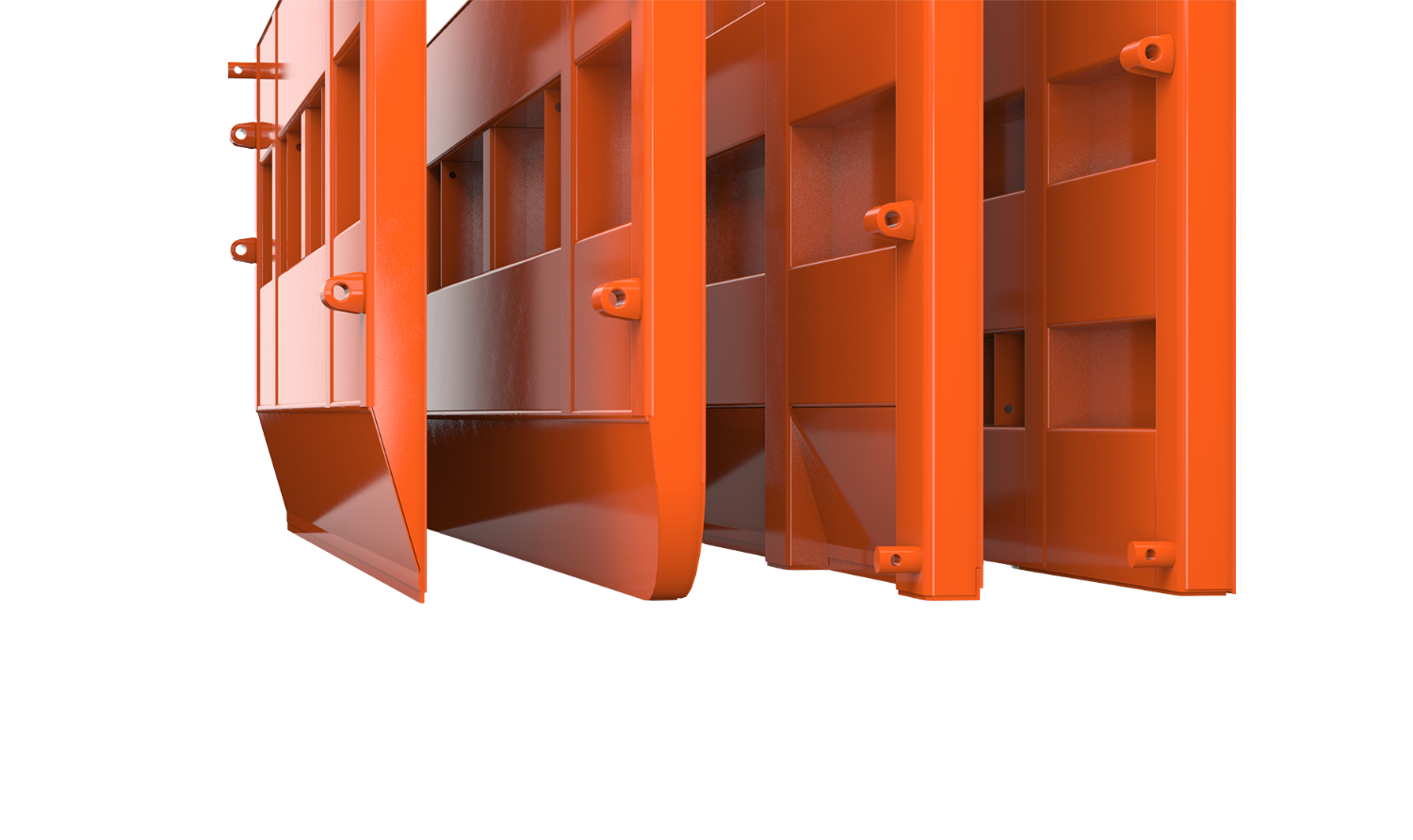

All our trench boxes are equipped with a variety of edge and stacking options to suit different soil types and project needs. Each box features an easy glide knife edge, designed for smoother insertion into tougher soils, ensuring quick and efficient setup. For sandier or softer soil conditions, a semi-flat edge is available, providing stability and minimizing disruption to the surrounding area.
Additionally, we offer a knife stacker option, which combines the functionalities of both driving and stacking. This dual-purpose feature allows for efficient driving into the ground while facilitating the secure stacking of multiple boxes, enhancing versatility in deeper excavation projects. For straightforward vertical stacking needs, our stacker option is ideal, enabling multiple boxes to be securely piled on top of each other, maximizing depth and safety for substantial excavation work.
North East Shoring Corp., Inc.
At North East Shoring Corp., Inc., We’re Always Focused on Keeping Both the Trench and OSHA off Your Back!
When you’re in the middle of a job, it can get tough to keep everyone safe. On a construction site, everyone is required to be always on high alert. You don't have to be stressed trying to keep people working while following safety guidelines in the best way you can. After decades of excavation and trench shoring experience, North East Shoring Corp., Inc. knows what you need. You’re not alone in finding the best trench boxes for your operation.
You can rent a trench box with a single phone call when you contact us. Think about how easy it would be to plan the rest of your job when you guarantee the time your trench boxes will be on-site. Picture how quickly and efficiently your crews could work with the proper boxes and equipment. We make it a reality when you buy or rent trench boxes from North East Shoring Corp., Inc. right now. We're only a phone call away.
